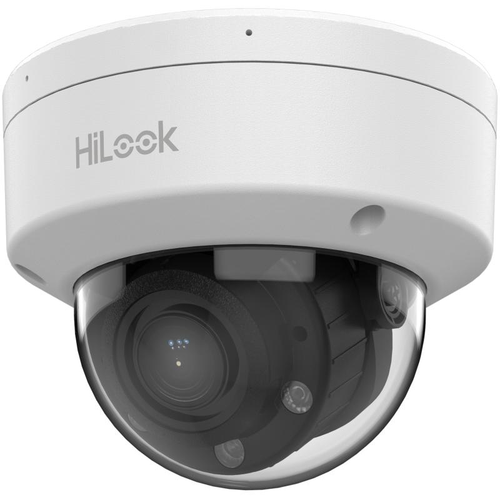

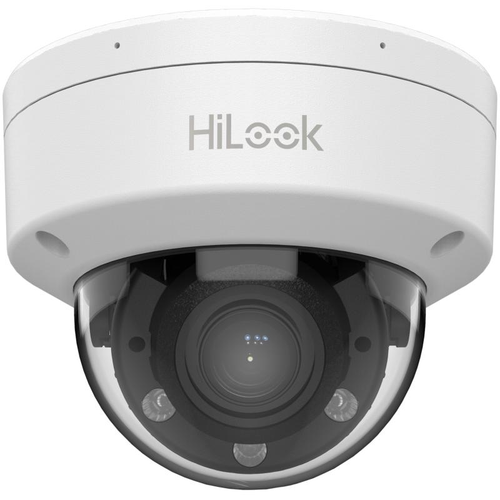

IPC-D660HA-LZU
ارسال رایگان
مشخصات
Image Sensor1/2.4" Progressive Scan CMOS
Max. Resolution 3200 × 1800
Min. IlluminationColor: 0.005 Lux @ (F1.6, AGC ...
Shutter Time1/3 s to 1/100,000 s
Day & NightIR cut filter
۷ روز ضمانت بازگشت کالا
ضمانت اصل بودن کالا
هایروکس سیستم
این محصول موجود است.
جهت نمایش قیمت و خرید، سایز محصول خود را انتخاب کنید
جهت نمایش قیمت و خرید، سایز محصول خود را انتخاب کنید
محصولات مشابه
معرفی
- High quality imaging with 6 MP resolution
- Support Human and Vehicle Detection
- Smart Hybrid Light: advanced technology with long range
- Clear imaging even with strong back lighting due to 120 dB WDR technology
- 2.8 to 12 mm motorized varifocal lens for easy installation and monitoring
- Up to 512 GB SD card slot for storage
- Efficient H.265+ compression technology
- Water and dust resistant (IP67) and vandal proof (IK08)
مشخصات
IPC-D660HA-LZU
Image Sensor1/2.4" Progressive Scan CMOS
Max. Resolution 3200 × 1800
Min. IlluminationColor: 0.005 Lux @ (F1.6, AGC ON),B/W: 0 Lux with IR
Shutter Time1/3 s to 1/100,000 s
Day & NightIR cut filter
Angle Adjustment Pan: 0° to 355°,tilt: 0° to 70°,rotate: 0° to 355°
Lens TypeVarifocal lens, motorized lens, 2.8 to 12 mm
Focal Length & FOV2.8 to 12 mm, horizontal FOV 106° to 35.6°, vertical FOV 55.9° to 20°, diagonal FOV 127.4° to 40.8°
Lens MountØ14
Iris Type Fixed
ApertureF1.6
Supplement Light TypeIR,White Light
Supplement Light Rangee Up to 30 m
Smart Supplement LightYes
IR Wavelength 850 nm
Main Stream50 Hz: 20 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720) 60 Hz: 20 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
Sub-Stream50 Hz: 20 fps (1280 × 720, 640 × 480, 640 × 360) 60 Hz: 20 fps (1280 × 720, 640 × 480, 640 × 360)
Video CompressionMain stream: H.265+/H.265/H.264+/H.264, Sub-stream: H.265/H.264/MJPEG
Video Bit Rate 32 Kbps to 16 Mbps
H.264 TypeBaseline Profile,Main Profile,High Profile
H.265 Type Main Profile
Region of Interest (ROI) 1 fixed region for main stream
Audio Type Mono sound
Environment Noise FilteringYes
Audio Sampling Rate 8 kHz/16 kHz
Audio CompressionG.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC-LC
Audio Bit Rate64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC)
SecurityPassword protection, complicated password, watermark, basic and digest authentication for HTTP, WSSE and digest authentication for Open Network Video Interface, security audit log, host authentication (MAC address)
Simultaneous Live ViewUp to 6 channels
APIOpen Network Video Interface (Profile S, Profile T),ISAPI,SDK
ProtocolsTCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP, UPnP
User/HostUp to 32 users 3 user levels: administrator, operator, and user
ClientiVMS-4200,HiLookVision
Web Browser Plug-in required live view: IE 10, IE 11, Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+
Wide Dynamic Range (WDR)120 dB
SNR≥ 52 dB
Day/Night Switch Day,Night,Auto,Schedule
Image EnhancementBLC,HLC,3D DNR
Image Settings Rotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser
Privacy Mask4 programmable polygon privacy masks
Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
Built-in Microphone Yes
Basic EventMotion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception
LinkageUpload to FTP,send email,notify surveillance center,trigger capture
Power12 VDC ± 25%, 0.8 A, max. 9.6 W,Ø5.5 mm coaxial power plug,reverse polarity protection,PoE: IEEE 802.3af, Class 3, max. 12 W
MaterialMetal & Plastic
Dimension Ø121.5 mm × 97.6 mm (Ø4.78 × 3.84\")"
Package Dimension150 mm × 150 mm × 141 mm (5.5" × 5.5" × 6.1")
Storage Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Startup and Operating Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
LanguageEnglish, Ukrainian
General FunctionHeartbeat,anti-banding,mirror,password protection,password reset via email
