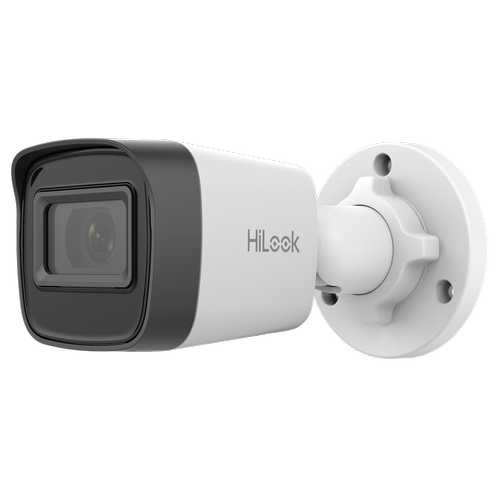

IPC-B121H-C

BrandHiLook

Image sensor1/2.9" Progressive Scan CMOS

Maximum resolution2 Megapixel (1920x1080)

Main Stream rate25 fps (1920×1080, 1280×720)

Extra Stream rate25 fps (640×480, 640x360)

CompressionH.265+ / H.264+ / H.265 / H.264

Bitrate32 Kbps ~ 8 Mbps

Lens2.8 mm

Viewing Angle (FOV)H: 94°, V: 51°, D: 112°

Range performance48 m (D), 19 m (O), 9 m (R), 4 m (I)

Minimum illuminationColour: 0.01 Lux @(F2.2, AGC ON)

• 0 Lux with IR range 20 m
• Day/NightRemovable mechanical ICR filter
• Image improvementsDWDR, BLC, HLC, 3D-DNR, AGC, AWB, Mirror Function
• Motion DetectionYes
• Internal memoryDoes not have
• AudioDoes not have
• Network interfaceEthernet 10/100M BaseT
• Remote accessWeb Browser, Hik-Connect Smartphone App, PC Software iVMS-4200 and Hik-Central
• InteroperabilityONVIF, ISAPIPowerDC 12 V / 410 mA / 5 W max. / IEEE802.3af PoE
• Degree of protectionWeatherproof IP67
• MaterialPlastic
• Temp. operation-30º C ~ +60º C
• Dimensions60.9 (W) x 57.9 (H) x 138.8 (D) mm
• Base dimensionsØ base 70 mm / Ø entre tornillos 55 mm / 3 tornillos
• Weight175 g
