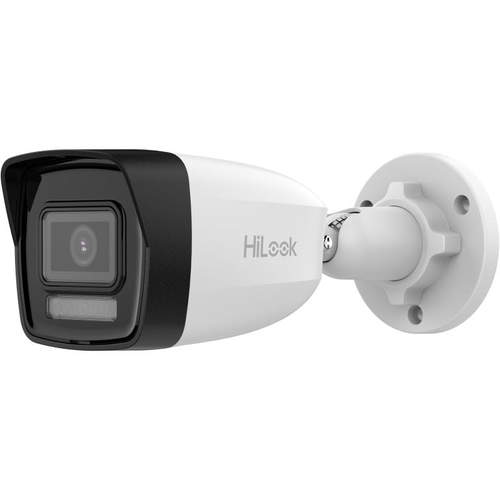

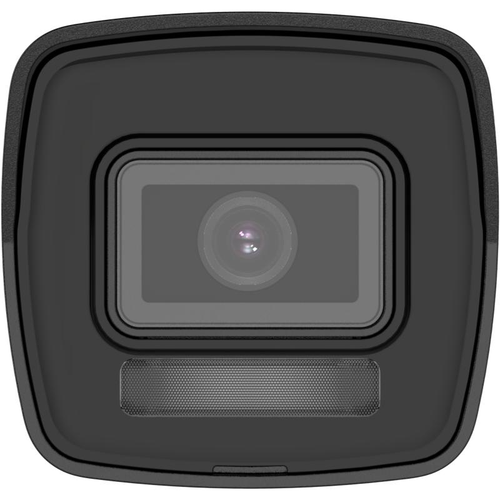

IPC-B120HA-LU
ارسال رایگان
گارانتی
مشخصات
کیفیت تصویر2 مگاپیکسل
رزولوشن1920x1080
فاصله کانونیلنز کانونی ثابت 2.8 میلی متر
جنس بدنهفلز و پلاستیک
مقاومتمقاوم در برابر آب و گرد و غبار...
۷ روز ضمانت بازگشت کالا
ضمانت اصل بودن کالا
هایروکس سیستم
این محصول موجود است.
جهت نمایش قیمت و خرید، سایز محصول خود را انتخاب کنید
جهت نمایش قیمت و خرید، سایز محصول خود را انتخاب کنید
محصولات مشابه
معرفی
- Camera
- Image Sensor
- 1/2.9" Progressive Scan CMOS
- Max. Resolution
- 1920 × 1080
- Min. Illumination
- Color: 0.005 Lux @ (F1.6, AGC ON),B/W: 0 Lux with IR
- Shutter Time
- 1/3 s to 1/100,000 s
- Day & Night
- IR cut filter
- Angle Adjustment
- Pan: 0° to 360°,tilt: 0° to 90°,rotate: 0° to 360°
- Lens
- Lens Type
- Fixed focal lens, 2.8 and 4 mm optional
- Focal Length & FOV
- 2.8 mm, horizontal FOV 103°, vertical FOV 56°, diagonal FOV 121°
- 4 mm, horizontal FOV 83°, vertical FOV 44°, diagonal FOV 99°
- Lens Mount
- M12
- Iris Type
- Fixed
- Aperture
- F1.6
- DORI
- DORI
- 2.8 mm, D: 45 m, O: 18 m, R: 9 m, I: 4 m
- 4 mm, D: 56 m, O: 22 m, R: 11 m, I: 5 m
- Illuminator
- Supplement Light Type
- IR,White Light
- Supplement Light Range
- Up to 30 m
- Smart Supplement Light
- Yes
- IR Wavelength
- 850 nm
- Video
- Main Stream
- 50 Hz: 25 fps (1920 × 1080, 1280 × 720)
- 60 Hz: 30 fps (1920 × 1080, 1280 × 720)
- Sub-Stream
- 50 Hz: 25 fps (640 × 480, 640 × 360)
- 60 Hz: 30 fps (640 × 480, 640 × 360)
- Video Compression
- Main stream: H.265+/H.265/H.264+/H.264,
- Sub-stream: H.265/H.264/MJPEG
- Video Bit Rate
- 32 Kbps to 8 Mbps
- H.264 Type
- Baseline Profile,Main Profile,High Profile
- H.265 Type
- Main Profile
- Bit Rate Control
- CBR,VBR
- Region of Interest (ROI)
- 1 fixed region for main stream
- Audio
- Audio Type
- Mono sound
- Environment Noise Filtering
- Yes
- Audio Sampling Rate
- 8 kHz/16 kHz
- Audio Compression
- G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC-LC
- Audio Bit Rate
- 64 Kbps (G.711 ulaw/G.711 alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC)
- Network
- Security
- Password protection, complicated password, watermark, basic and digest authentication for HTTP, WSSE and digest authentication for Open Network Video Interface, security audit log, host authentication (MAC address)
- Simultaneous Live View
- Up to 6 channels
- API
- Open Network Video Interface (Profile S, Profile T),ISAPI,SDK
- Protocols
- TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP
- User/Host
- Up to 32 users
- 3 user levels: administrator, operator, and user
- Client
- iVMS-4200,HiLookVision
- Web Browser
- Plug-in required live view: IE 10, IE 11,
- Local service: Chrome 57.0+, Firefox 52.0+
- Image
- Wide Dynamic Range (WDR)
- Digital WDR
- SNR
- ≥ 52 dB
- Day/Night Switch
- Day,Night,Auto,Schedule
- Image Enhancement
- BLC,HLC,3D DNR
- Image Settings
- Rotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser
- Privacy Mask
- 4 programmable polygon privacy masks
- Interface
- Ethernet Interface
- 1 RJ45 10 M/100 M self-adaptive Ethernet port
- Built-in Microphone
- Yes
- Event
- Basic Event
- Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception
- Linkage
- Upload to FTP,send email,notify surveillance center,trigger capture
- General
- Power
- 12 VDC ± 25%, 0.4 A, max. 5 W,Ø5.5 mm coaxial power plug,reverse polarity protection,
- PoE: IEEE 802.3af, Class 3, max. 6.5 W
- Material
- Metal & Plastic
- Dimension
- 184.1 mm × 66 mm × 69.1 mm (7.3" × 2.6" × 2.7")
- Package Dimension
- 216 mm × 121 mm × 118 mm (8.5" × 4.8" × 4.6")
- Weight
- Approx. 265 g (0.6 lb.)
- With Package Weight
- Approx. 495 g (1.1 lb.)
- Storage Conditions
- -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
- Startup and Operating Conditions
- -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
- Language
- English, Ukrainian
- General Function
- Heartbeat,anti-banding,mirror,password protection,password reset via email
- Approval
- EMC
- FCC: 47 CFR Part 15, Subpart B,
- CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014,
- RCM: AS/NZS CISPR 32: 2015,
- IC: ICES-003: Issue 7
- Safety
- CB: IEC 62368-1: 2014+A11,
- CE-LVD: EN 62368-1: 2014/A11: 2017
- Environment
- CE-RoHS: 2011/65/EU,
- WEEE: 2012/19/EU,
- Reach: Regulation (EC) No 1907/2006
- Protection
- IP67: IEC 60529-2013
مشخصات
IPC-B120HA-LU
کیفیت تصویر2 مگاپیکسل
رزولوشن1920x1080
فاصله کانونیلنز کانونی ثابت 2.8 میلی متر
جنس بدنهفلز و پلاستیک
مقاومتمقاوم در برابر آب و گرد و غبار (IP67)
قابلیت تشخیصپشتیبانی از تشخیص انسان و وسیله نقلیه
