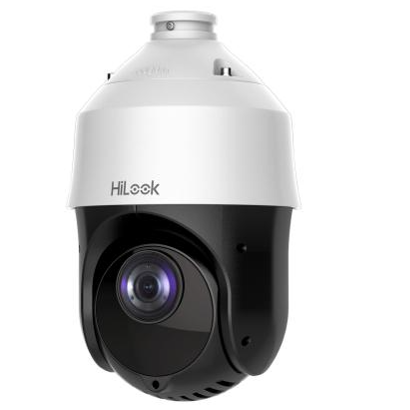

PTZ-N4225I-DE
ارسال رایگان
گارانتی
مشخصات
کیفیت تصویر4 مگاپیکسل
رزولوشن 1920 × 1080
میکروفوندارای میکروفون داخلی
فاصله کانونی4.8 میلی متر تا 120 میلی متر، ...
جنس بدنهفلز و پلاستیک
۷ روز ضمانت بازگشت کالا
ضمانت اصل بودن کالا
هایروکس سیستم
این محصول موجود است.
جهت نمایش قیمت و خرید، سایز محصول خود را انتخاب کنید
جهت نمایش قیمت و خرید، سایز محصول خود را انتخاب کنید
محصولات مشابه
معرفی
- Camera
- Image Sensor
- 1/2.8" progressive scan CMOS
- Max. Resolution
- 1920 × 1080
- Min. Illumination
- Color: 0.005 Lux @(F1.6, AGC ON), B/W: 0.001 Lux @(F1.6, AGC ON), 0 Lux with IR
- Shutter Speed
- 1/1 s to 1/30,000 s
- Day & Night
- IR Cut Filter
- Zoom
- 25x optical, 16x digital
- Lens
- Focal Length
- 4.8 mm to 120 mm, 25× optical
- FOV
- Horizontal field of view: 57.6° to 2.5° (Wide-Tele),
- Vertical field of view: 34.4° to 1.4° (Wide-Tele),
- Diagonal field of view: 64.5° to 2.9° (Wide-Tele)
- Focus
- Auto, semi-auto, manual
- Aperture
- F1.6 to F3.5
- Zoom Speed
- Approx. 3.2 s (optical lens, wide-tele)
- Illuminator
- Supplement Light Type
- IR
- Supplement Light Range
- Up to 100 m
- Smart Supplement Light
- Yes
- PTZ
- Movement Range (Pan)
- 360° endless
- Movement Range (Tilt)
- From -15° to 90° (Auto-flip)
- Pan Speed
- Configurable, from 0.1°/s to 80°/s, Preset Speed: 80°/s
- Tilt Speed
- Configurable, from 0.1°/s to 80°/s, Preset Speed: 80°/s
- Proportional Pan
- Yes
- Presets
- 300
- Preset Freezing
- Yes
- Patrol Scan
- 8 patrols, up to 32 presets for each patrol
- Pattern Scan
- 4 pattern scans, record time over 10 minutes for each scan
- Park Action
- Preset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan
- PTZ Status Display
- Yes
- Scheduled Task
- Preset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan/Dome Reboot/Dome Adjust
- Power-off Memory
- Yes
- Video
- Main Stream
- 50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720),
- 60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720)
- Sub-Stream
- 50Hz: 25fps (704 × 576, 640 × 480, 352 × 288),
- 60Hz: 30fps (704 × 480, 640 × 480, 352 × 240)
- Third Stream
- 50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288),
- 60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)
- Video Compression
- Main Stream: H.265+/H.265/H.264+/H.264,
- Sub-Stream: H.265/H.264/MJPEG,
- Third Stream: H.265/H.264/MJPEG
- Video Bit Rate
- 32 Kbps to 16384 Kbps
- H.264 Type
- Baseline Profile/Main Profile/High Profile
- H.265 Type
- Main Profile
- Scalable Video Coding (SVC)
- H.264 and H.265 encoding
- Region of Interest (ROI)
- Main stream, sub-stream and third stream respectively support four fixed areas
- Audio
- Audio Compression
- G.711alaw/G.711ulaw/G.722/G.726/MP2L2/PCM
- Audio Bit Rate
- 64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 Kbps to 160 Kbps (MP2L2)
- Network
- Protocols
- IPv4/IPv6, HTTP, HTTPS, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour, WebSocket, WebSockets
- Simultaneous Live View
- Up to 20 channels
- API
- Open Network Video Interface, ISAPI, SDK, ISUP
- User/Host
- Up to 32 users. 3 levels: Administrator, Operator and User
- Security
- User authentication (ID and PW), Host authentication (MAC address); HTTPS encryption; IEEE 802.1x port-based network access control; IP address filtering
- Network Storage
- NAS (NPS, SMB/ CIPS), ANR
- Client
- iVMS-4200, HiLookVision
- Web Browser
- IE10-11, Chrome 57+, Firefox 52+, Safari 12+
- Image
- Image Settings
- Saturation, brightness, contrast, sharpness, gain, and white balance adjustable by client software or web browser
- Wide Dynamic Range (WDR)
- 120 dB
- Defog
- Digital defog
- Image Stabilization
- No
- Image Enhancement
- BLC, HLC, 3D DNR
- Privacy Mask
- 24 programmable privacy masks
- Regional Focus
- Yes
- Regional Exposure
- Yes
- Interface
- Ethernet Interface
- 1 RJ45 10 M/100 M Ethernet Interface; PoE (802.3 at, class4)
- On-board Storage
- Built-in memory card slot, support Micro SD/SDHC/SDXC, up to 256 GB
- Audio
- 1 input (line in), max. input amplitude: 2-2.4 vpp, input impedance: 1 KΩ ± 10%; 1 output (line out), line level, output impedance: 600 Ω
- Event
- Basic Event
- Motion Detection, Video Tampering Detection, Exception Detection
- Smart Event
- Intrusion Detection, Line Crossing Detection, Region Entrance Detection, Region Exiting Detection, Unattended Baggage Detection, Object Removal Detection, Audio Exception Detection
- General
- Power
- 12 VDC, 2.0 A & PoE (802.3at), 42.5 to 57 VDC, 0.6 A, class4
- Max.:18 W (IR Max.6 W)
- Dimension
- Ø 165.9 mm × 290 mm (Ø 6.53" × 11.42")
- Weight
- Approx. 2.5 kg (5.51 lb)
- Material
- ADC 12, PC+10% GF
- Operating Condition
- -30 °C to 65 °C (-22 °F to 149 °F). Humidity 90% or less (non-condensing)
- Approval
- EMC
- FCC (47 CFR Part 15, Subpart B);
- CE-EMC (EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3:2013+A1:2019, EN 50130-4: 2011 +A1: 2014);
- RCM (AS/NZS CISPR 32: 2015);
- IC (ICES-003: Issue 7);
- KC (KN 32: 2015, KN 35: 2015)
- Safety
- UL (UL 62368-1)
- CB (IEC 62368-1:2014+A11);
- CE-LVD (EN 62368-1:2014+A11:2017),
- BIS (IS 13252(Part 1):2010/ IEC 60950-1: 2005);
- LOA (IEC/EN 60950-1)
- Environment
- CE-RoHS (2011/65/EU);
- WEEE (2012/19/EU);
- Reach (Regulation (EC) No 1907/2006)
- Protection
- IP66 (IEC 60529-2013), 4000V Lightning Protection, Surge Protection and Voltage Transient Protection
مشخصات
PTZ-N4225I-DE
کیفیت تصویر4 مگاپیکسل
رزولوشن 1920 × 1080
میکروفوندارای میکروفون داخلی
فاصله کانونی4.8 میلی متر تا 120 میلی متر، 25 × اپتیکال
جنس بدنهفلز و پلاستیک
مقاومتمقاوم در برابر آب و گرد و غبار IP66
تصویربرداری ضد نورتصویربرداری واضح در برابر نور پس زمینه قوی به دلیل فناوری WDR واقعی 120 دسی بل
تصویر برداری در شبعملکرد عالی در شب با IR بهبودیافته تا 100 متر
حافظه داخلیاسلات کارت حافظه داخلی، پشتیبانی از کارت microSD/SDHC/SDXC، تا 256 گیگابایت
