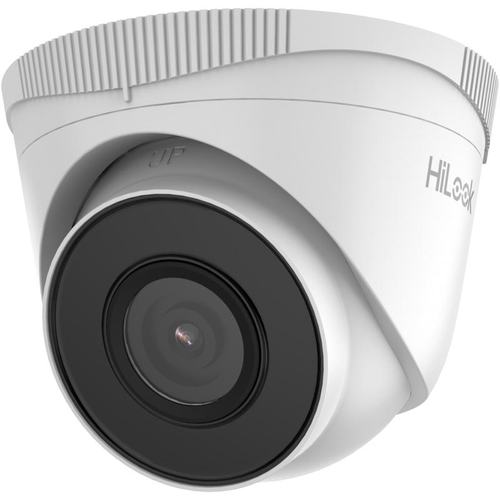

IPC-T221H-C
ارسال رایگان
مشخصات
Image Sensor1/2.7" Progressive Scan CMOS
Max. Resolution1920 × 1080
Min. Illumination Color: 0.01 Lux @(F2.0, AGC O...
Shutter Time1/3 s to 1/100,000 s
Day & NightIR cut filter
۷ روز ضمانت بازگشت کالا
ضمانت اصل بودن کالا
هایروکس سیستم
این محصول موجود است.
جهت نمایش قیمت و خرید، سایز محصول خود را انتخاب کنید
جهت نمایش قیمت و خرید، سایز محصول خود را انتخاب کنید
محصولات مشابه
معرفی
- High quality imaging with 2 MP resolution
- Efficient H.265+ compression technology
- Clear imaging against strong back light by DWDR technology
- Water and dust resistant (IP67)
- Easy installation with Power over Ethernet (PoE) technology
مشخصات
IPC-T221H-C
Image Sensor1/2.7" Progressive Scan CMOS
Max. Resolution1920 × 1080
Min. Illumination Color: 0.01 Lux @(F2.0, AGC ON), B/W: 0 Lux with IR
Shutter Time1/3 s to 1/100,000 s
Day & NightIR cut filter
Angle Adjustment Pan: 0° to 355°,tilt: 0° to 75°,rotate: 0° to 355°
Lens Type Fixed focal lens, 2.8 and 4 mm optional
Focal Length & FOV2.8 mm, horizontal FOV 105°, vertical FOV 58°, diagonal FOV 123° 4 mm, horizontal FOV 81°, vertical FOV 43°, diagonal FOV 97°
Lens Mount M12
Iris Type Fixed
Aperture F2.0
Supplement Light TypeIR,White Light
Supplement Light Rangee Up to 30 m
Smart Supplement LightYes
IR Wavelength 850 nm
Main Stream50 Hz: 25 fps (1920 × 1080, 1280 × 720) 60 Hz: 30 fps (1920 × 1080, 1280 × 720)
Sub-Stream 50 Hz: 25 fps (640 × 480, 640 × 360) 60 Hz: 30 fps (640 × 480, 640 × 360)
Video Compression Main stream: H.265/H.264/H.264+/H.265+ Sub-stream: H.265/H.264/MJPEG
Video Bit Rate32 Kbps to 8 Mbps
H.264 TypeBaseline Profile/Main Profile/High Profile
H.265 Type Main Profile
Region of Interest (ROI) 1 fixed region for main stream
Protocols TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, QoS, IPv6, Bonjour, IPv4, UDP, SSL/TLS
User/HostUp to 32 users 3 user levels: administrator, operator, and user
ClientiVMS-4200,HiLookVision
Web Browser Plug-in required live view: IE 10+ Plug-in free live view: Chrome 57.0+, Firefox 52.0+ Local service: Chrome 57.0+, Firefox 52.0+
Wide Dynamic Range (WDR)Digital WDR
Day/Night Switch Day,Night,Auto,Schedule
Image EnhancementBLC,HLC,3D DNR
Image SettingsSaturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser.
Privacy Mask4 programmable polygon privacy masks
Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
Built-in Microphone Yes
Basic EventMotion detection, video tampering alarm, exception
LinkageUpload to FTP, notify surveillance center, send email
Power 12 VDC ± 25%, 0.4 A, max. 5 W, Ø5.5 mm coaxial power plug PoE: 802.3af, Class 3, 36 V to 57 V, 0.2 A to 0.15 A, max. 6.5 W
MaterialMetal & Plastic
Dimension Ø110 mm × 93.2 mm (Ø4.3" × 3.7")
Package Dimension 150 mm × 150 mm × 141 mm (5.9" × 5.9" × 5.6")
Storage Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Startup and Operating Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
LanguageEnglish, Ukrainian
General Function Anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter
